   Weight & Balance   More functions than your average flight computer:
Calculate two axis weight & balance

Page Table of Contents Use these links to go directly to desired calculator
  Weight & Balance Sheet CG from Datum
  CG Shift Ballast
  CG % Aft of MAC Cargo Pallet Load

Weight & Balance
Sheet

                                            Show two more decimal points

  Longitudinal Axis
Row Tools Description Fuel
(volume)
 | Weight of item Longitudinal
Arm
Longitudinal
Moment
Calculate
Weight Arm Moment Total
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

  Lateral Axis
Row Tools
Description
Fuel
(volume)
 | Weight of item
Lateral
Arm
Lateral
Moment

Calculate

  Arm Moment
         |


         |

         |

         |


         |
         |
         |
         |
         |
         |
         |
         |
         |
         |
         |
         |
         |
         |
         |
         |

  Type of Fuel
    Weight per Volume (specific weight)
  Type of Fuel     [lbs / US gal] [lbs / IMP gal] [Kg / US gal] [Kg / IMP gal] [Kg / Liter]
  AV Gasoline
  Jet A
  Jet B/JP-4
  Other

  weight per volume (specific weight) based on temperature          [oC]      [oF]
Note: results for weight per volume are typically accurate up to one decimal point only. Due to the inherent variability of fuels even the same type of fuel may vary greatly depending on its origin. The figures provided here are a very rough estimate.
Values based on FAA-H-8083-1A, Aircraft Weight and Balance Handbook Chart, page 7-13.

  protect type of fuel weight per volume parameters*

  Load Examples
Light Aircraft (twin piston, four seats)
Commuter Aircraft
Light Helicopter (piston, two seats)

      Instructions: Select type of fuel (if appropriate), then begin by entering the weight and balance information for the longitudinal axis. Remember to
      select the appropriate calculation mode for each row before typing the information for that row. When entering a fuel quantity, you may use volume
      quantities by checking the fuel box in the desired row. This will then cause the sheet to calculate fuel weight based on the fuel selected and the weight
      per volume
value. If you are entering the fuel weight directly then you do not need to check the fuel box. The description box is completely ignored
      in the computations. Use this box to describe the content of the row entered. Once the longitudinal axis is entered, the lateral axis can be entered if
      this is desired, otherwise ignore this section. The lateral axis is generally used for weight and balance calculations for helicopters.

CG Shift

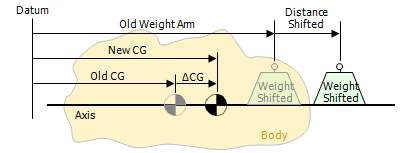

CG Shift with Weight Diagram
Weight Shifted     [lbs]   [kg]   [oz]   [g]
Distance Shifted     [in] - L / + R   [m] - L / + R   [ft] - L / + R   [cm] - L / + R
Total Weight     [lbs]   [kg]   [oz]   [g]
Shift in CG (ΔCG)     [in] - L / + R   [m] - L / + R   [ft] - L / + R   [cm] - L / + R

    Enter any three fields then press "Eval" on any remaining field for that field's result.

CG % Aft of MAC

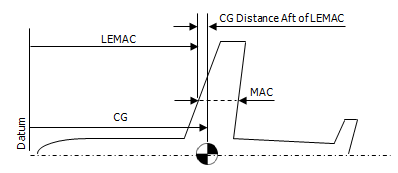

CG - Mean Aerodynamic Cord Diagram
Distance Aft of LEMAC     [in]   [m]   [ft]   [cm]
LEMAC     [in]   [m]   [ft]   [cm]
CG  % Aft of LEMAC     [%]

    Enter any two fields then press "Eval" on any remaining field for that field's result.

    Abbreviations:     MAC = Mean Aerodynamic Cord
                              LEMAC = Leading Edge Mean Aerodynamic Cord

CG
from Datum


LEMAC     [in]   [m]   [ft]   [cm]
MAC     [in]   [m]   [ft]   [cm]
CG % Aft of LEMAC     [%]
CG distance from Datum     [in]   [m]   [ft]   [cm]

    Enter any three fields then press "Eval" on any remaining field for that field's result.

    Abbreviations:     MAC = Mean Aerodynamic Cord
                              LEMAC = Leading Edge Mean Aerodynamic Cord

Ballast

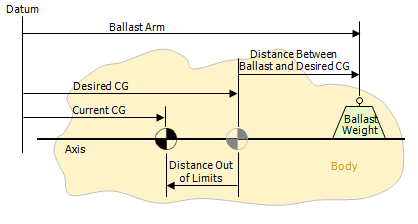

Ballast Diagram
Weight of Aircraft
without Ballast
  [lbs]  [kg]  [oz]  [g]
Distance Out of Limits   [in] - L / + R [m] - L / + R [ft] - L / + R  [cm] - L / + R
Distance Between
Ballast and Desired CG
  [in] - L / + R [m] - L / + R  [ft] - L / + R [cm] - L / + R
Ballast Weight   [lbs]  [kg]  [oz]  [g]

    Enter any three fields then press "Eval" on any remaining field for that field's result.
    Note: "Distance Out of Limits" and "Distance Between Ballast and Desired CG" must have opposite signs for balancing to be possible.

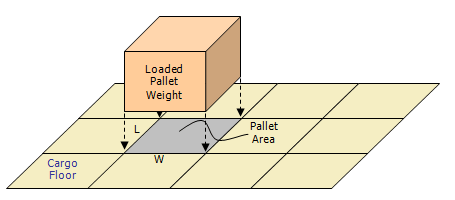

Cargo Pallet
Load


Pallet Load
Length of Pallet (L)     [in]   [m]   [ft]   [cm]
Width of Pallet (W)     [in]   [m]   [ft]   [cm]
Loaded Pallet Weight     [lbs]   [kg]   [oz]   [g]
Floor Load     [lbs/in2]

  [kg/in2]

  [oz/in2]
  [lbs/m2]
  [kg/m2]
  [oz/m2]
  [lbs/ft2]
  [kg/ft2]
  [oz/ft2]
  [lbs/cm2]
  [kg/cm2]
  [oz/cm2]

    Enter any three fields then press "Eval" on any remaining field for that field's result.
